Custom Size Whiteboards

High quality, dry erase, magnetic custom size whiteboards made to YOUR specs

Choose your custom size whiteboard
Provide us with your "H x "W
custom sized lined, gridded, plain magnetic whiteboard panels
Pictured: three sample 22"H x 33"W

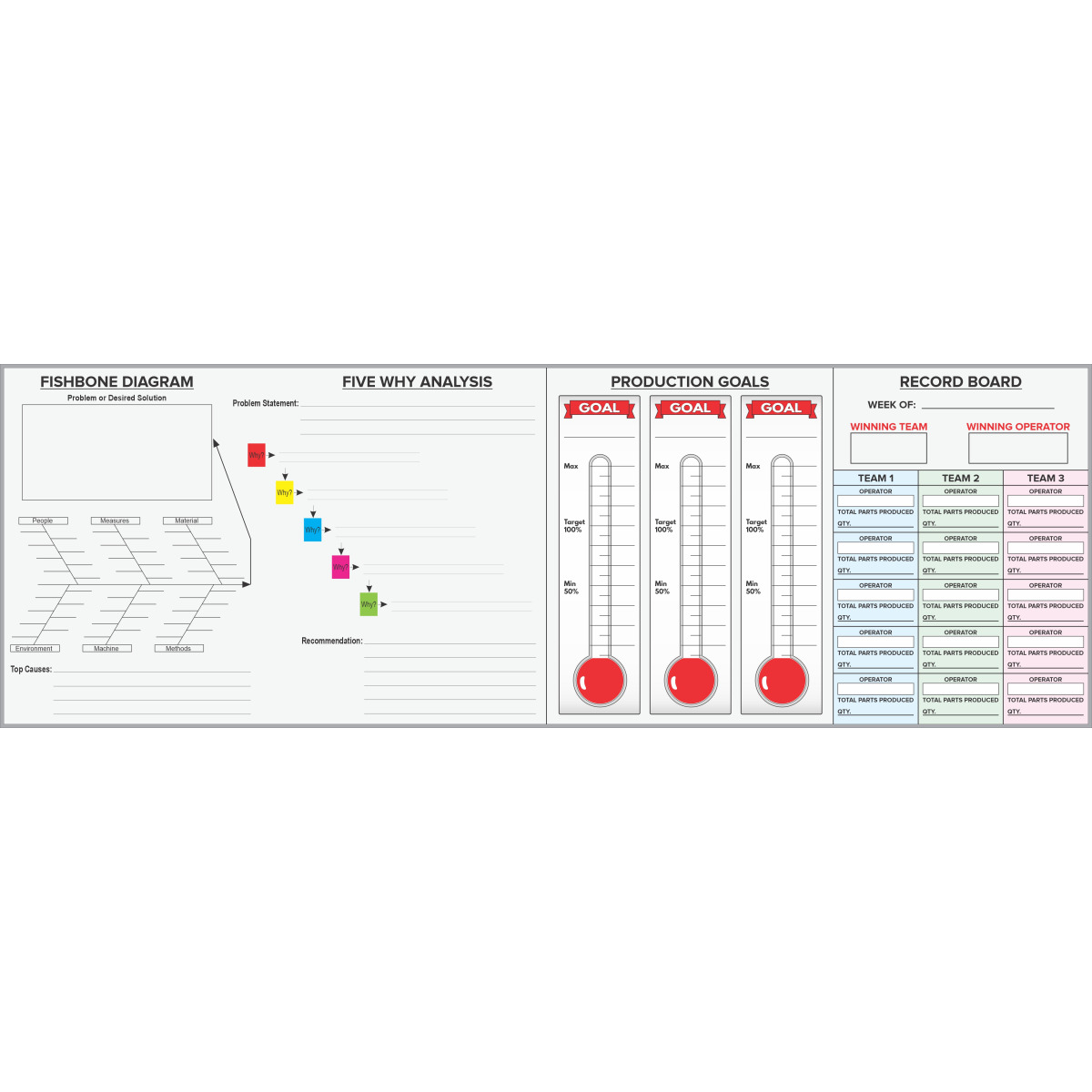

Custom printed whiteboard
Custom Printed design P/N 91790SZNP
Choose your custom size whiteboard
custom sized lined, gridded, plain magnetic whiteboard panels
Custom printed whiteboard

Custom Size Whiteboards

High quality, dry erase, magnetic custom size whiteboards made to YOUR specs

  • CUSTOM MADE TO THE SIZE YOU NEED!
  • Standard board sizes don't "fit"? Let us make one just for you!
  • Measure your board space using Outside Dimensions (including frame, edge to edge)
  • Minimum: 12"H x 18"W = 216 Square Inches
  • Maximum: 48"H x 144"W = 6,912 Square Inches
    • Note: Actual available whiteboard surface area is 1" less in height and width due to frame
  • Choose from plain white or custom printed whiteboards
  • Custom printed whiteboards come with a supply kit
  • Plain whiteboards do not come with a supply kit and supplies would need to be added separately
Custom Orders
Custom Step ArrowSelect Customize

Select Get A Quote next to the Part # below and fill out the form provided.

Custom Step ArrowSelect Customize

We will send you an email with a price quote.

Select Customize

You approve/revise and place your order.

Sizes & Pricing
Step 1:Select Design
Step1. Select Part # or GET A QUOTE to Continue
Step1. Select Board Size Range to Continue
Sq.In. Board Size H" x W" (O.D.)Ships Via Board Only
Part #Price
216-432UPS91230SZGet A Quote$178.00
433-576UPS91330SZGet A Quote$209.00
577-864UPS91350SZGet A Quote$247.00
865-1152UPS91370SZGet A Quote$293.00
1153-1728Truck91570SZGet A Quote$388.00
1729-2304Truck91770SZGet A Quote$478.00
2305-2880Truck91780SZGet A Quote$599.00
2881-3456Truck91790SZGet A Quote$657.00
3457-4608Truck91701SZGet A Quote$783.00
4609-6912**Truck91705SZGet A Quote$1,028.00
Sq.In. Board Size H" x W" (O.D.)Ships Via Board Only
Part #Price
216-432UPS91230SZNPGet A Quote$208.00
433-576UPS91330SZNPGet A Quote$249.00
577-864UPS91350SZNPGet A Quote$307.00
865-1152UPS91370SZNPGet A Quote$379.00
1153-1728Truck91570SZNPGet A Quote$508.00
1729-2304Truck91770SZNPGet A Quote$638.00
2305-2880Truck91780SZNPGet A Quote$819.00
2881-3456Truck91790SZNPGet A Quote$891.00
3457-4608Truck91701SZNPGet A Quote$1,103.00
4609-6912**Truck91705SZNPGet A Quote$1,508.00
** Larger sizes can be constructed by adjoining multiple panels together - contact us for more information
Additional Information
Detailed Description

  • Very durable, dry erase, non-stain, custom size magnetic board surface
  • Our custom-made whiteboards are ruggedly constructed to provide years of uninterrupted use
  • Our custom magnetic dry erase boards come in a choice of 3 surfaces: plain white, 1" space lined, 1"x1" grid pattern
  • Personalize your custom size whiteboard:
    • A Supply Kit is NOT included for plain whiteboards, simply add just the accessories you want
    • Options include: wood frames, other line patterns, other line colors
  • Magnetic Panel Description:
    • Dry-erase, non-stain surface on three layer substrate of steel, wood & aluminum

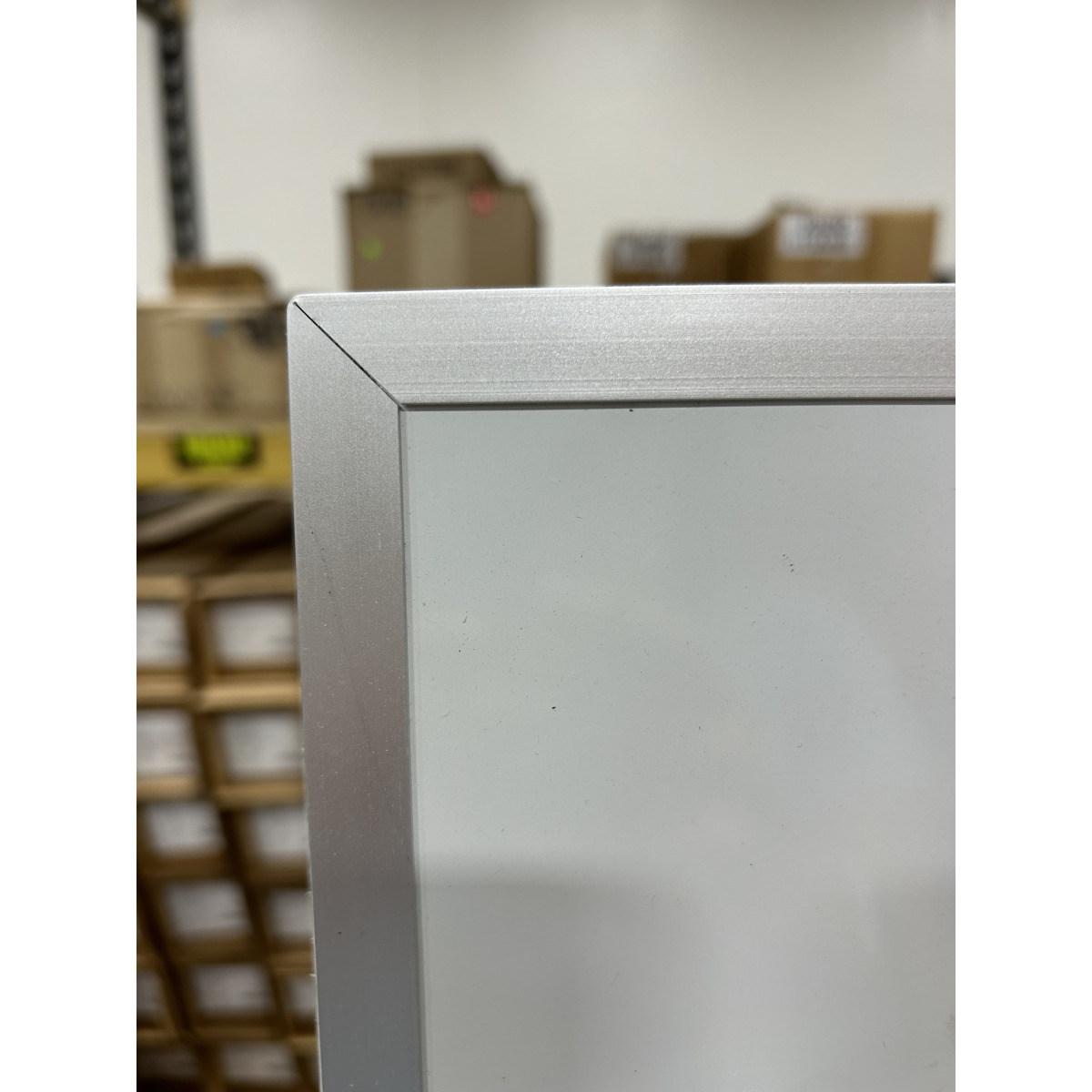

    • Framed in satin finish aluminum
    • Plain - white; 1"x1" Gridded - grey squares; 1" Lined - grey horizontal lines
  • Custom Printed Whiteboards include a Supply Kit:
    • Whiteboard Cleaner
    • Magnetic Eraser
    • 4 Mixed Color Dry Erase Markers- Fine Tip

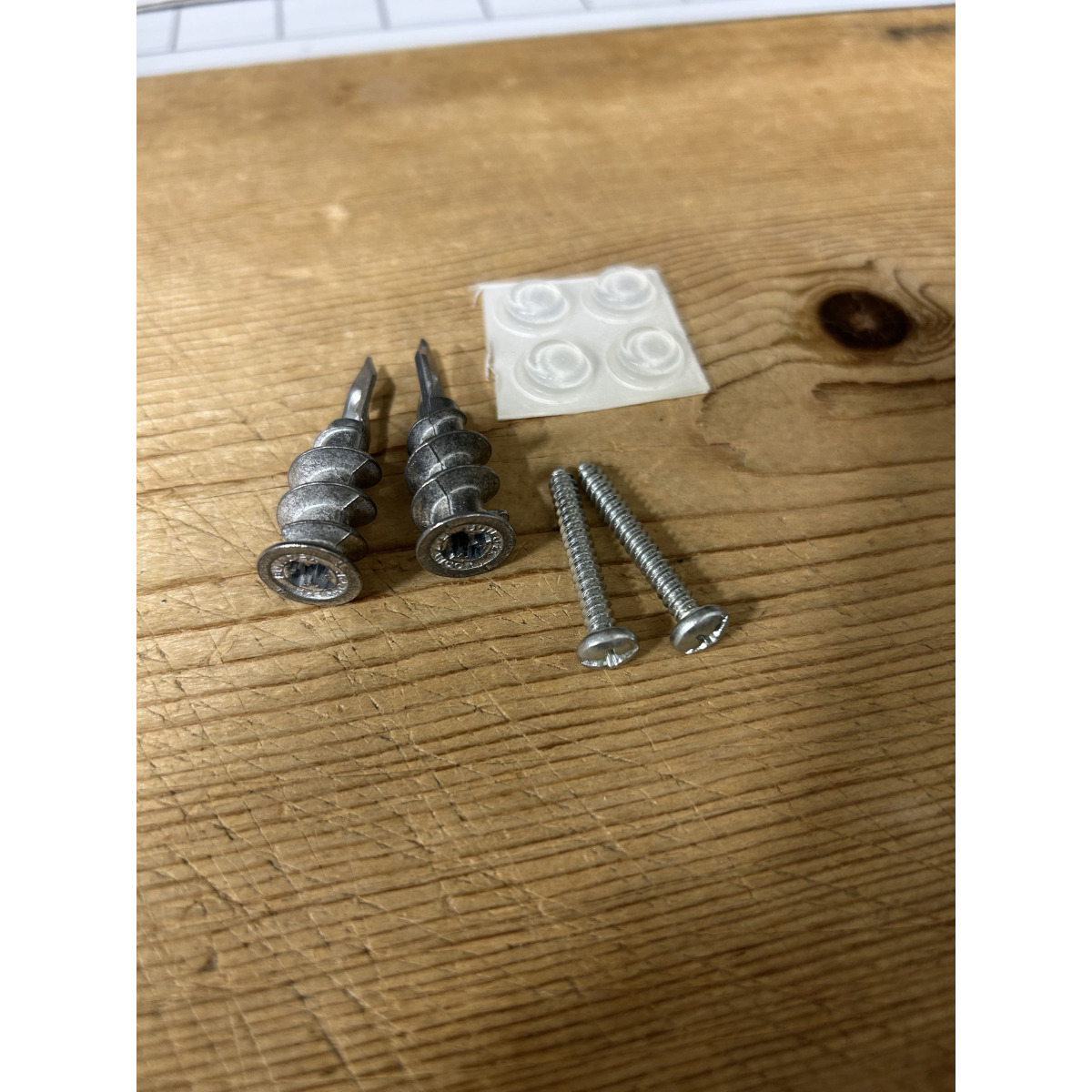

    • Hanging Hardware
  • Plain Whiteboards include:
    • Hanging Hardware

Tech Specs

  • Specify board size (H & W) with order - in inches measured edge to edge (Outside Dimensions)
  • Specify panel surface style with order:
    • Plain white
    • 1" x 1" gridded
    • 1" lined
  • Sizes over 8' long (96"L) are available in plain white surface only up to 12' long (144"L)
  • Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation
  • Service temperature range = -10F to +160F
  • These custom magnetic dry erase boards are made for indoor use
  • Class C Fire rated
  • Aluminum frame: Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion, framed board weighs 2.7 lbs per square foot, depth from board surface face to wall = 9/16" (14.3 mm)

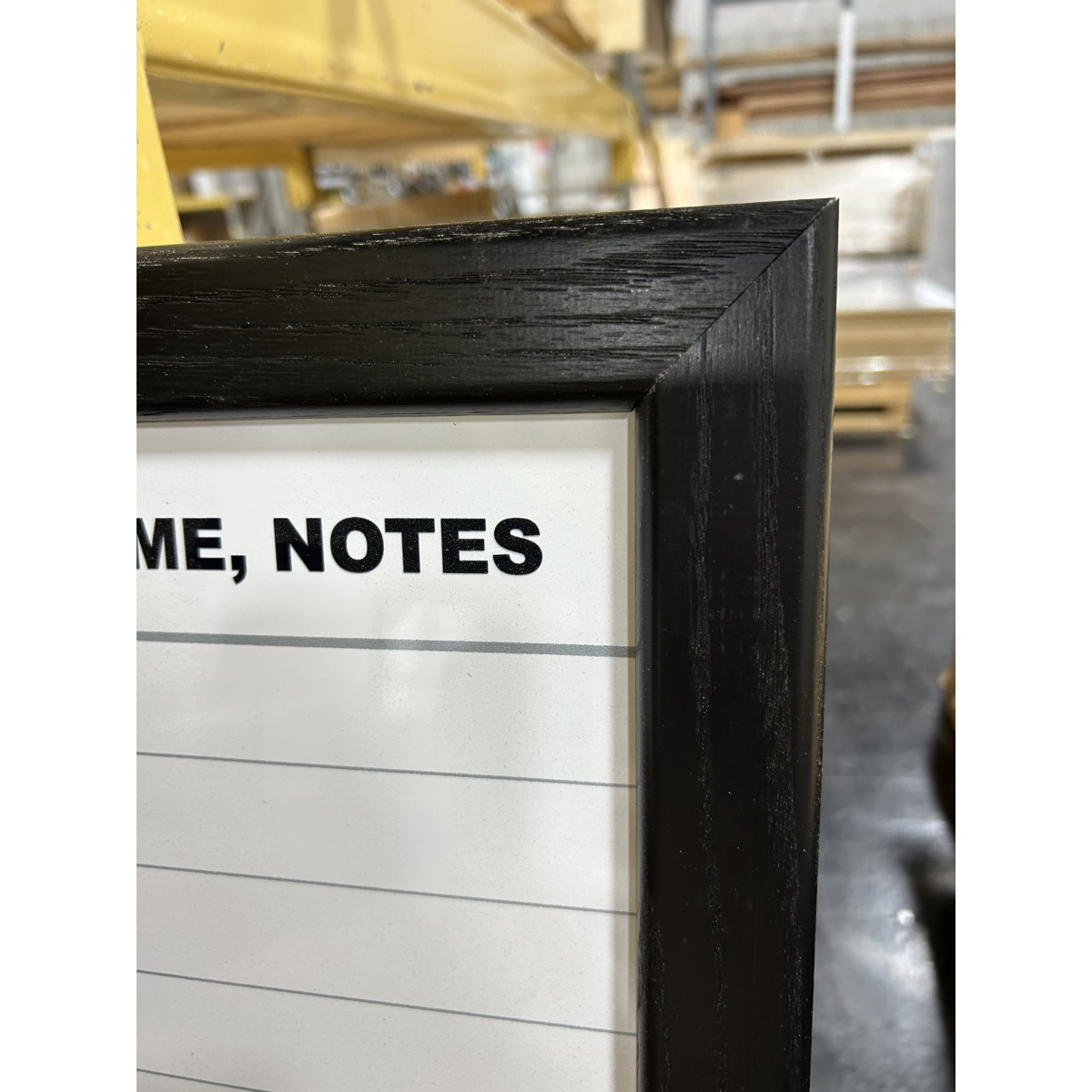

  • Wood frame: color stained and sealed ash, framed board weighs 3.1 lbs per square foot, depth from board surface face to wall = 15/16" (23.8 mm)

Options

  • Magnetic Panel Options - contact Customer Service to special order

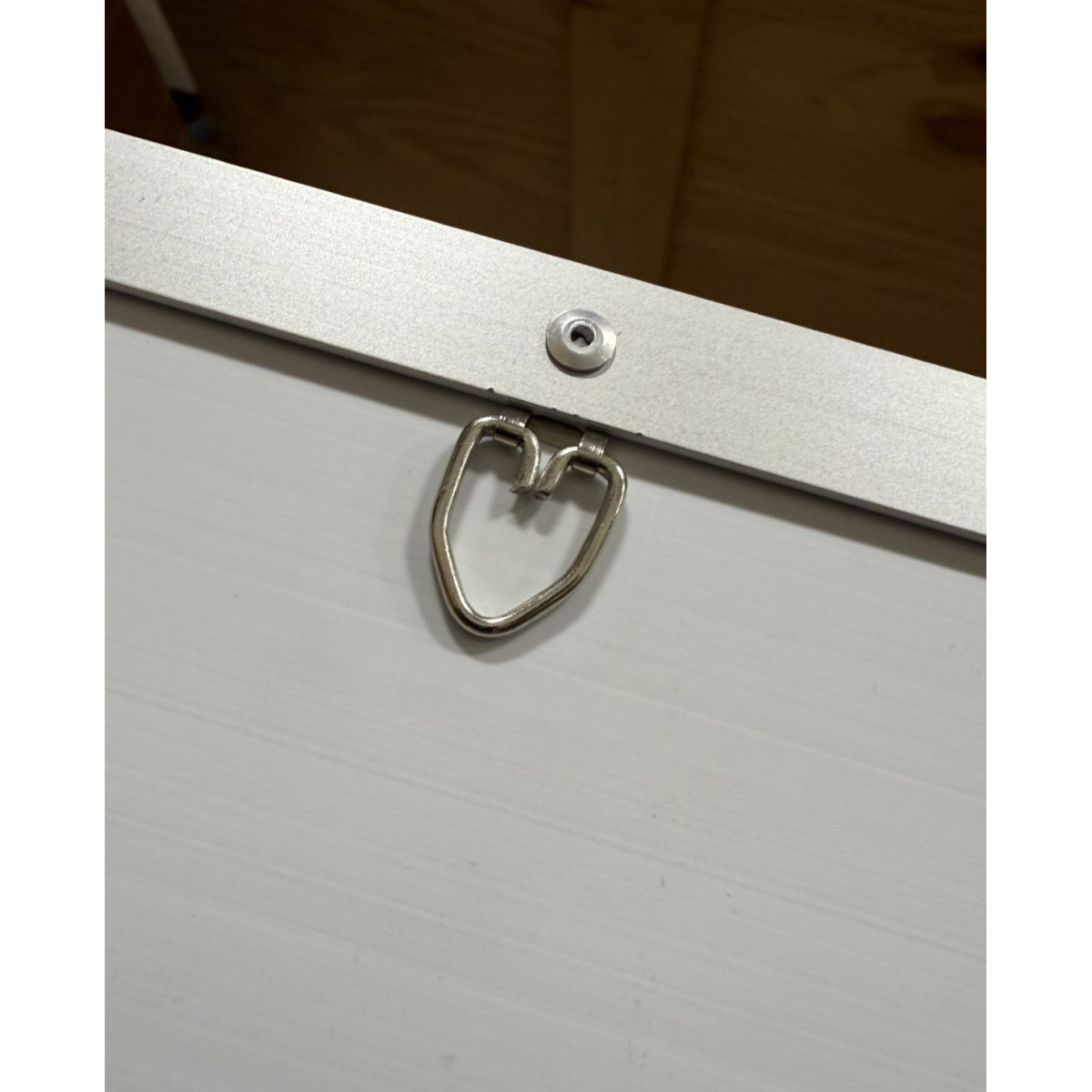

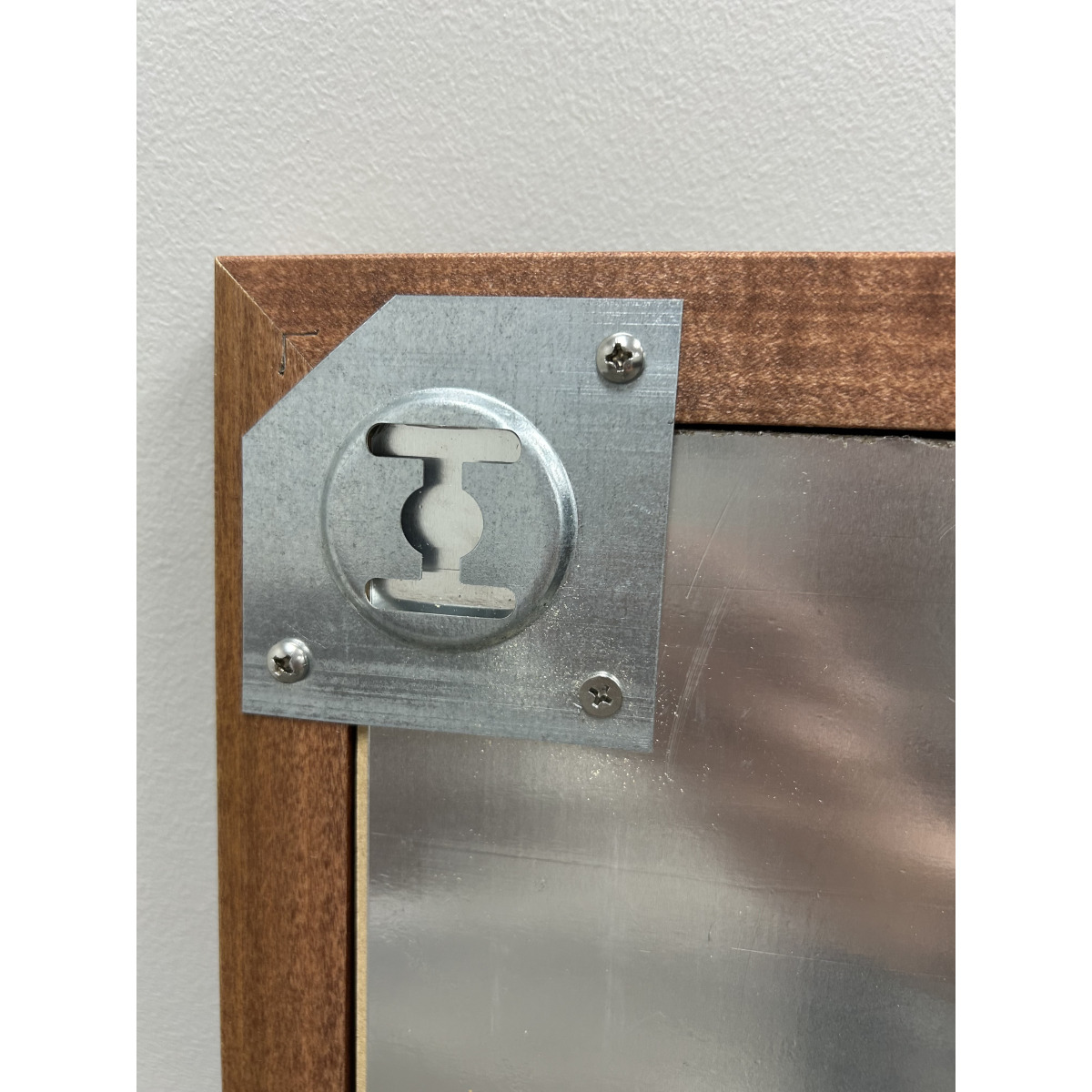

  • Panels may also be hung vertically, however you must indicate that preference with your order such that the installed hanging brackets on back are properly positioned
  • Wood frame: Natural Oak, Walnut, Cherry, Black stains - add 20% to price above
  • Line colors: black, red, green, blue, disappearing (lightly colored)
  • Other line patterns: 3" spaced lines, 1"x2" grid, vertical lines, etc - select your own pattern to best fit your needs
  • Whiteboard Skin only - plain surface whiteboards (dry erase whiteboard on steel with no backing) are available for re-surfacing applications - sizes up to 4'x8', price is 60%  of panel Part # prices above

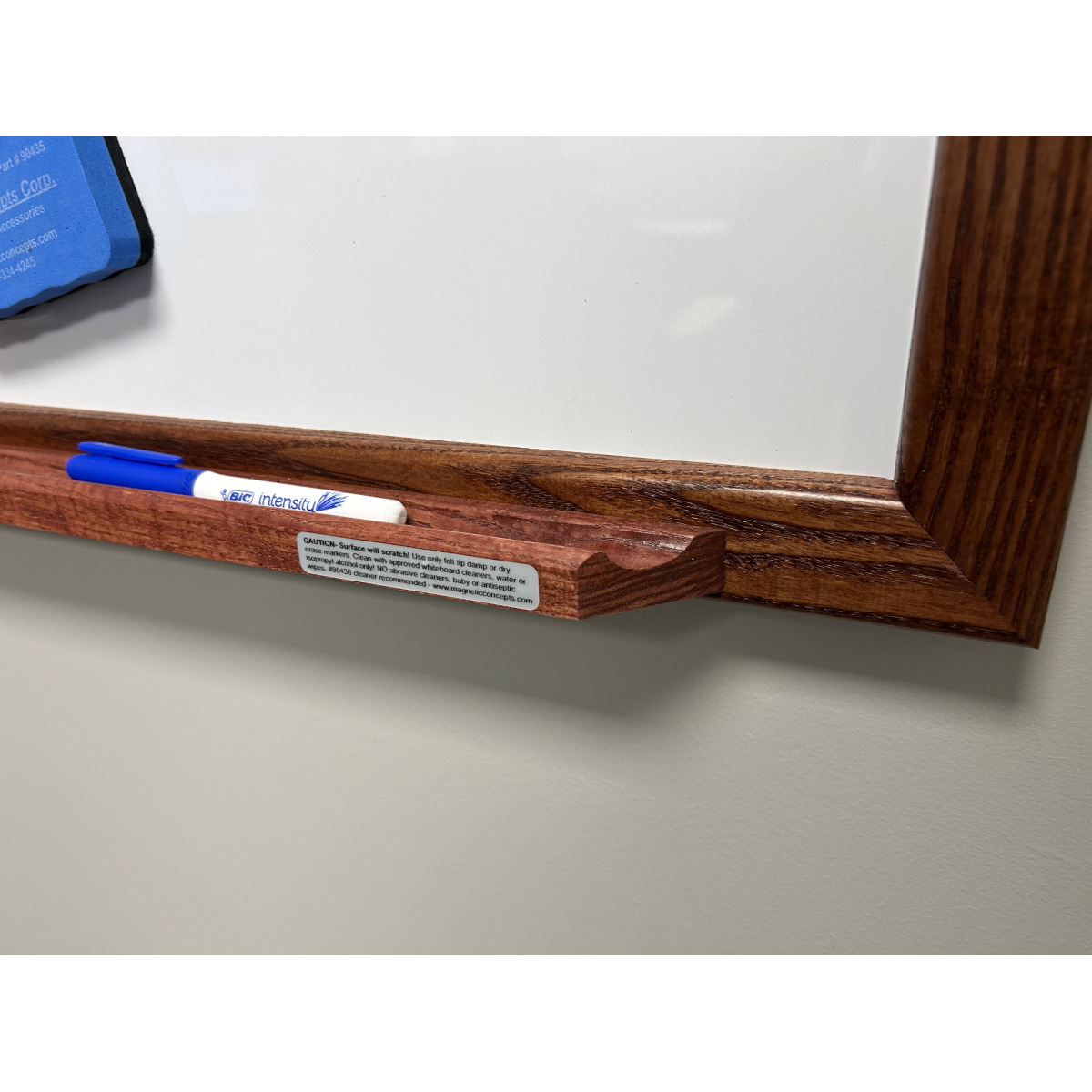

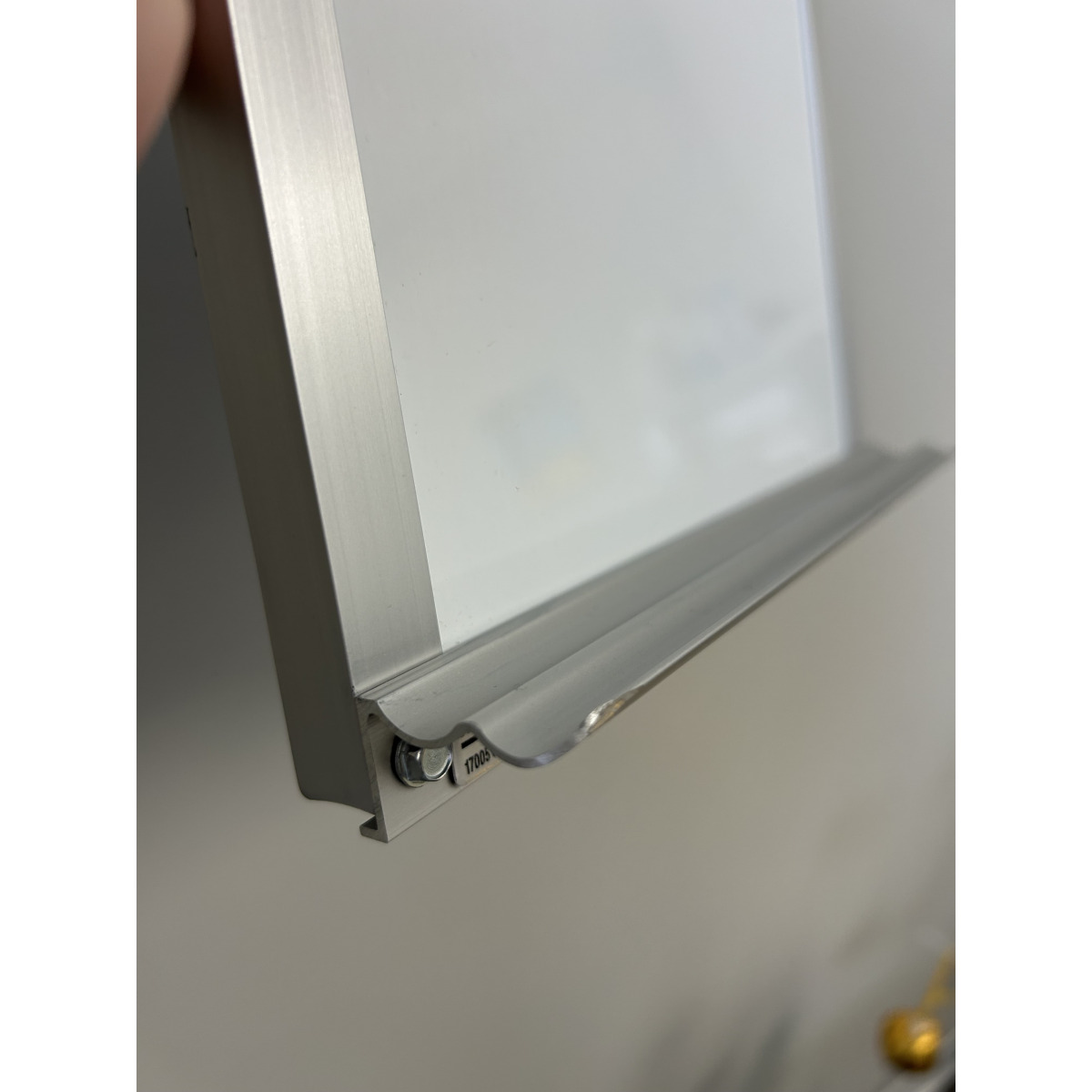

Optional Accessories - sold separately

Customer Comments:
Sizes & Pricing
Step2. Select Part # or GET A QUOTE to Continue
Sq.In. Board Size H" x W" (O.D.)216-432
Ships ViaUPS
Board Only
Part #91230SZGet A Quote
Price/Ea $178.00
Sq.In. Board Size H" x W" (O.D.)433-576
Ships ViaUPS
Board Only
Part #91330SZGet A Quote
Price/Ea $209.00
Sq.In. Board Size H" x W" (O.D.)577-864
Ships ViaUPS
Board Only
Part #91350SZGet A Quote
Price/Ea $247.00
Sq.In. Board Size H" x W" (O.D.)865-1152
Ships ViaUPS
Board Only
Part #91370SZGet A Quote
Price/Ea $293.00
Sq.In. Board Size H" x W" (O.D.)1153-1728
Ships ViaTruck
Board Only
Part #91570SZGet A Quote
Price/Ea $388.00
Sq.In. Board Size H" x W" (O.D.)1729-2304
Ships ViaTruck
Board Only
Part #91770SZGet A Quote
Price/Ea $478.00
Sq.In. Board Size H" x W" (O.D.)2305-2880
Ships ViaTruck
Board Only
Part #91780SZGet A Quote
Price/Ea $599.00
Sq.In. Board Size H" x W" (O.D.)2881-3456
Ships ViaTruck
Board Only
Part #91790SZGet A Quote
Price/Ea $657.00
Sq.In. Board Size H" x W" (O.D.)3457-4608
Ships ViaTruck
Board Only
Part #91701SZGet A Quote
Price/Ea $783.00
Sq.In. Board Size H" x W" (O.D.)4609-6912**
Ships ViaTruck
Board Only
Part #91705SZGet A Quote
Price/Ea $1,028.00
Sq.In. Board Size H" x W" (O.D.)216-432
Ships ViaUPS
Board Only
Part #91230SZNPGet A Quote
Price/Ea $208.00
Sq.In. Board Size H" x W" (O.D.)433-576
Ships ViaUPS
Board Only
Part #91330SZNPGet A Quote
Price/Ea $249.00
Sq.In. Board Size H" x W" (O.D.)577-864
Ships ViaUPS
Board Only
Part #91350SZNPGet A Quote
Price/Ea $307.00
Sq.In. Board Size H" x W" (O.D.)865-1152
Ships ViaUPS
Board Only
Part #91370SZNPGet A Quote
Price/Ea $379.00
Sq.In. Board Size H" x W" (O.D.)1153-1728
Ships ViaTruck
Board Only
Part #91570SZNPGet A Quote
Price/Ea $508.00
Sq.In. Board Size H" x W" (O.D.)1729-2304
Ships ViaTruck
Board Only
Part #91770SZNPGet A Quote
Price/Ea $638.00
Sq.In. Board Size H" x W" (O.D.)2305-2880
Ships ViaTruck
Board Only
Part #91780SZNPGet A Quote
Price/Ea $819.00
Sq.In. Board Size H" x W" (O.D.)2881-3456
Ships ViaTruck
Board Only
Part #91790SZNPGet A Quote
Price/Ea $891.00
Sq.In. Board Size H" x W" (O.D.)3457-4608
Ships ViaTruck
Board Only
Part #91701SZNPGet A Quote
Price/Ea $1,103.00
Sq.In. Board Size H" x W" (O.D.)4609-6912**
Ships ViaTruck
Board Only
Part #91705SZNPGet A Quote
Price/Ea $1,508.00
