Fishbone Chart Whiteboard

Utilize the classic cause & effect diagram on a whiteboard

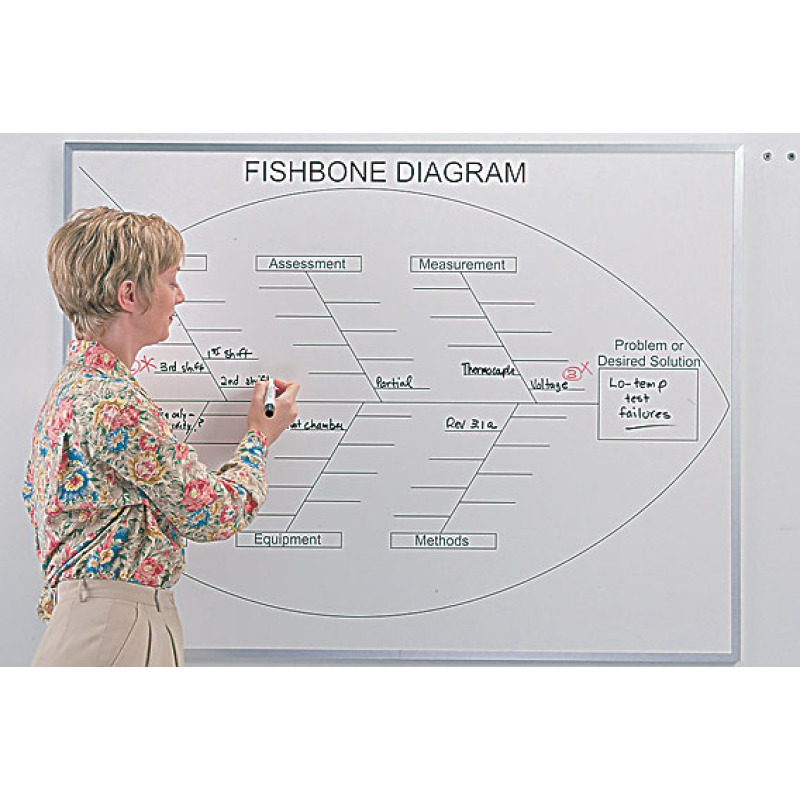

fishbone chart whiteboard
Pictured: P/N 20571 - 3'H x 4'W

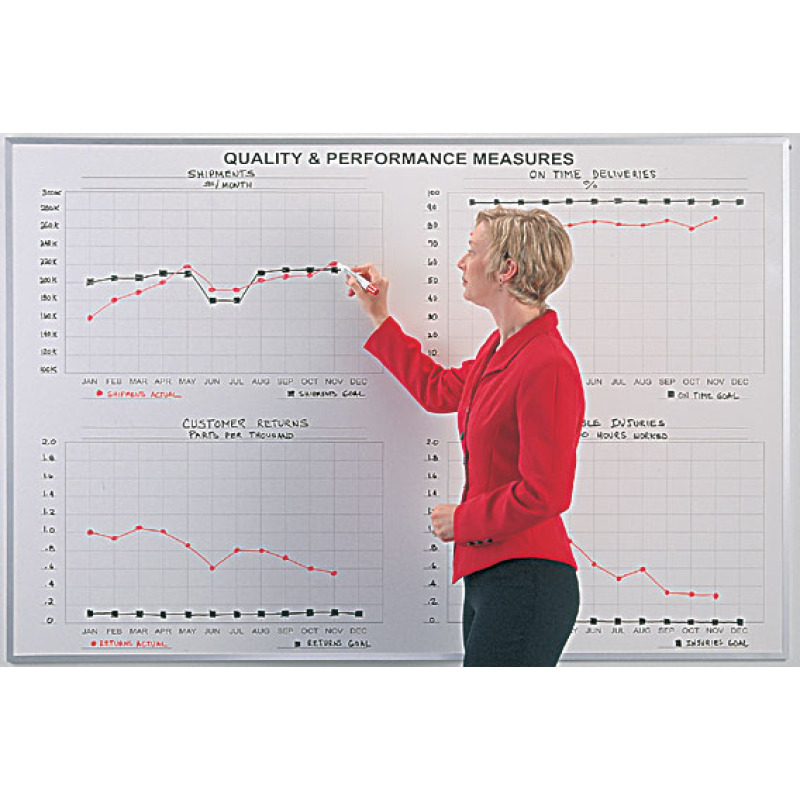

continuous improvement whiteboard
Pictured: P/N 21790 - 4'H x 6'W

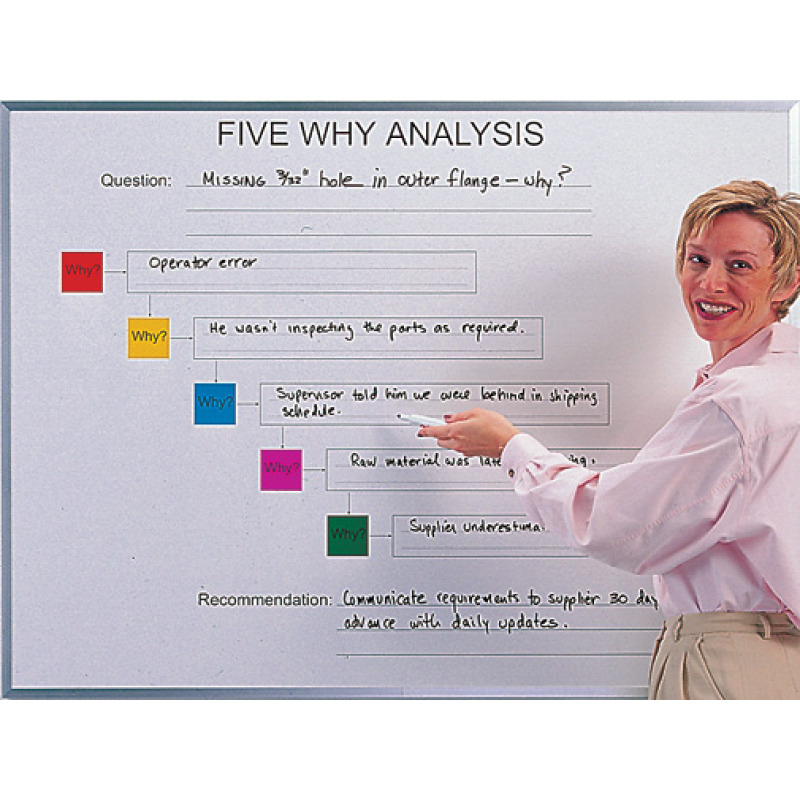

five why chart whiteboard
Pictured: P/N 21790 - 4'H x 6'W

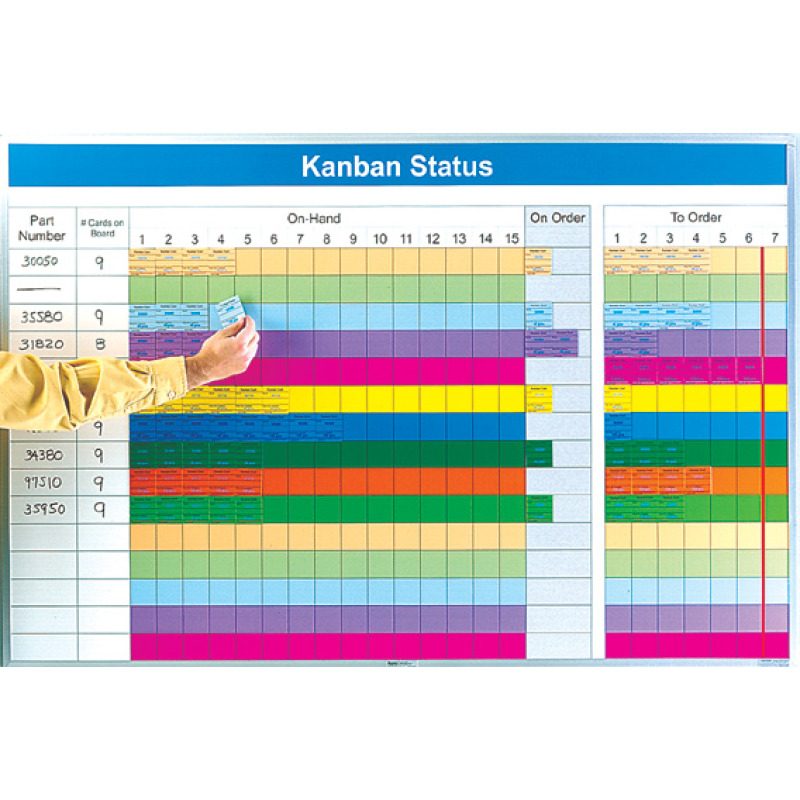

custom kanban whiteboard
Pictured: P/N 20573 - 3'H x 4'W
fishbone chart whiteboard
continuous improvement whiteboard
five why chart whiteboard
custom kanban whiteboard

Fishbone Chart Whiteboard

Utilize the classic cause & effect diagram on a whiteboard

  • Whiteboard with a classic Cause & Effect diagram design
  • High quality, long lasting, dry erase whiteboard
  • Use this fishbone planner in team meetings and for management decision-making to tackle a problem
  • Especially effective when there are many factors to consider and no clear comparisons between them
  • Organize the data into main categories and then review each for its potential impact on the problem or solution
  • Fishbone chart includes FREE Supply Kit - see Detailed Description below
Sizes & Pricing
Step 1:Select Part # to Continue
Step 1:Select Option to Continue
Board Size H' x W'
2' x 3'3' x 4'4' x 6'
Board Size H' x W'Ships Via Board with Kit
Part #Price
2' x 3'UPS20351$285.00
3' x 4'Truck20571$475.00
4' x 6'Truck20791$829.00
* Price includes a Supply Kit of useful accessories
Additional Information
Detailed Description

  • Our visual display systems help assure improvement in lean manufacturing process analysis and control, error proofing, safety, quality control and inventory
  • We will design your fishbone chart board to your manufacturing management needs
  • FREE DESIGN CUSTOMIZATION to your specs
  • Add your company name or logo
  • Add color to header or to differentiate board areas
  • Change the graphics to accommodate your specific problem areas
  • We create the board to best address your decision making process -- simply tell us (call, email or fax) what you would like when you order
  • Fishbone planner boards include hidden hanger slots on back
  • Includes FREE kit of whiteboard supplies:
    • 4 Dry-Erase Markers - fine point red, blue, green, black
    • Whiteboard Cleaner
    • Magnetic Penholder
    • Damp-erase Marking Pen
    • Magnetic Eraser
    • Hanging Hardware


P/N 20571 - 3'Hx4'W
fishbone chart whiteboard
P/N 21790 - 4'Hx6'W
continuous improvement whiteboard
P/N 21790 - 4'Hx6'W
five why chart whiteboard
P/N 20573 - 3'Hx4'W
custom kanban whiteboard

Tech Specs

  • High quality magnetic whiteboard in an aluminum frame Intense heat permanently fuses your color graphics design with a sheet of solid steel to produce a highly durable, brilliant, dry-erase magnetic surface
  • Our process produces a sturdy three-layer construction - the steel is laminated onto a rigid engineered wood foundation and backed with a sheet of aluminum foil as a protective moisture barrier
  • WILL NOT STAIN, FADE, SHADOW OR CRACK
  • No surface blemishes that are commonly seen on inferior whiteboards
  • Our Polymer Fusion™ Process creates a long lasting, custom magnetic surface
  • Maintains its "like new" appearance throughout years and years of daily use
  • This specialized process produces the most durable of any color printed whiteboard surface available in the market today!
  • Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation
  • Service temperature range = -10F to +160F
  • This fishbone planner is made for indoor use
  • Class C Fire rated
  • Aluminum frame: Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion, framed board weighs 2.7 lbs per square foot, depth from board surface face to wall = 9/16" (14.3 mm)
  • Wood frame: color stained and sealed ash, framed board weighs 3.1 lbs per square foot, depth from board surface face to wall = 15/16" (23.8 mm)

Options

  • Lean manufacturing board designs
  • We offer several well-known system designs - see Lean Manufacturing
  • However, we can also customize any board to your unique requirements
  • Custom designs to your measurement specifications
  • Additional board sizes
  • Whiteboard lining tape, letter sets, pens, symbols - see Whiteboard Supplies
