Plant and Facilities Layout Whiteboard Kit

Design and change space plans on a magnetic whiteboard

plant and facilities layout kit

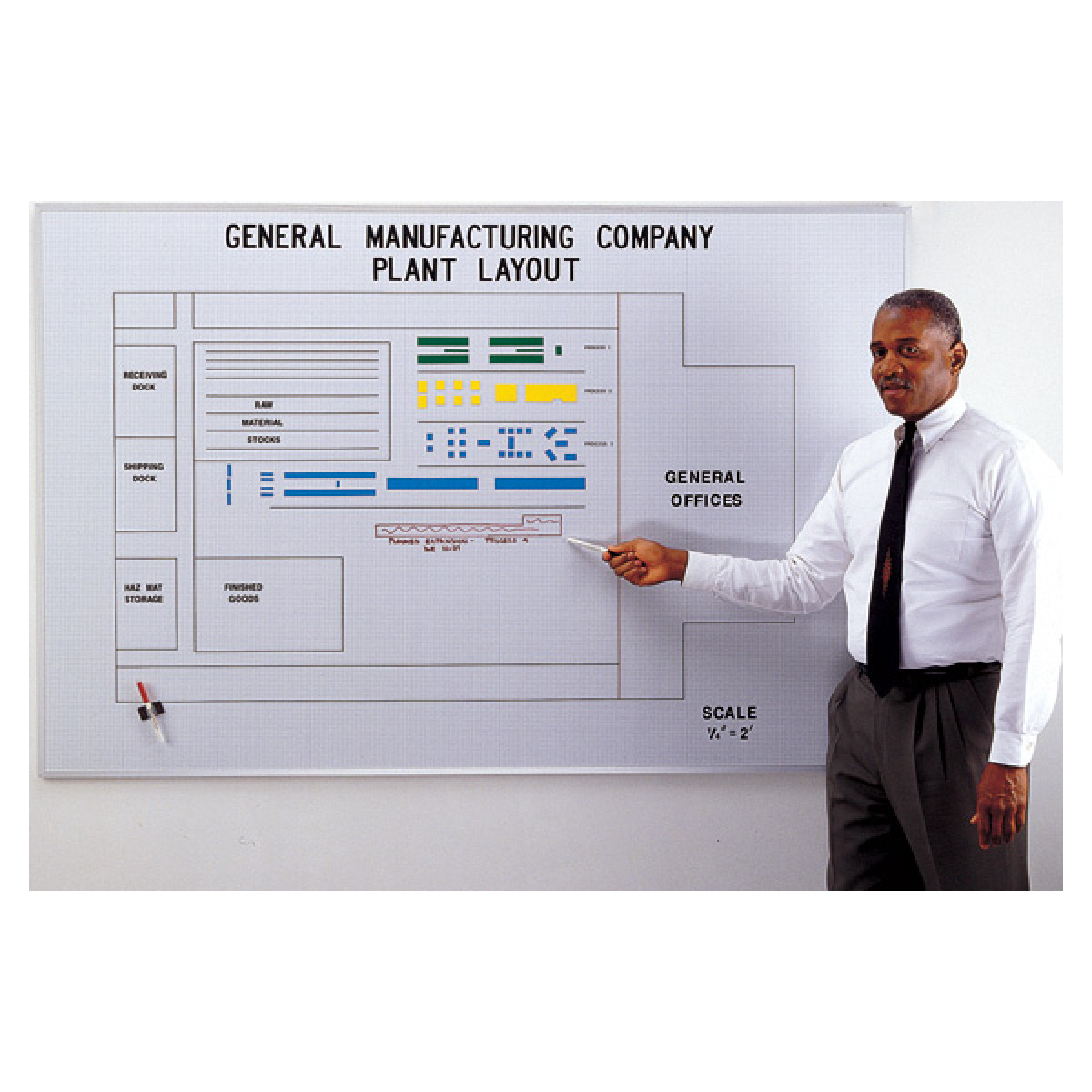

Pictured: P/N 80790 - 4'H x 6'W
scored break-apart magnet sheets

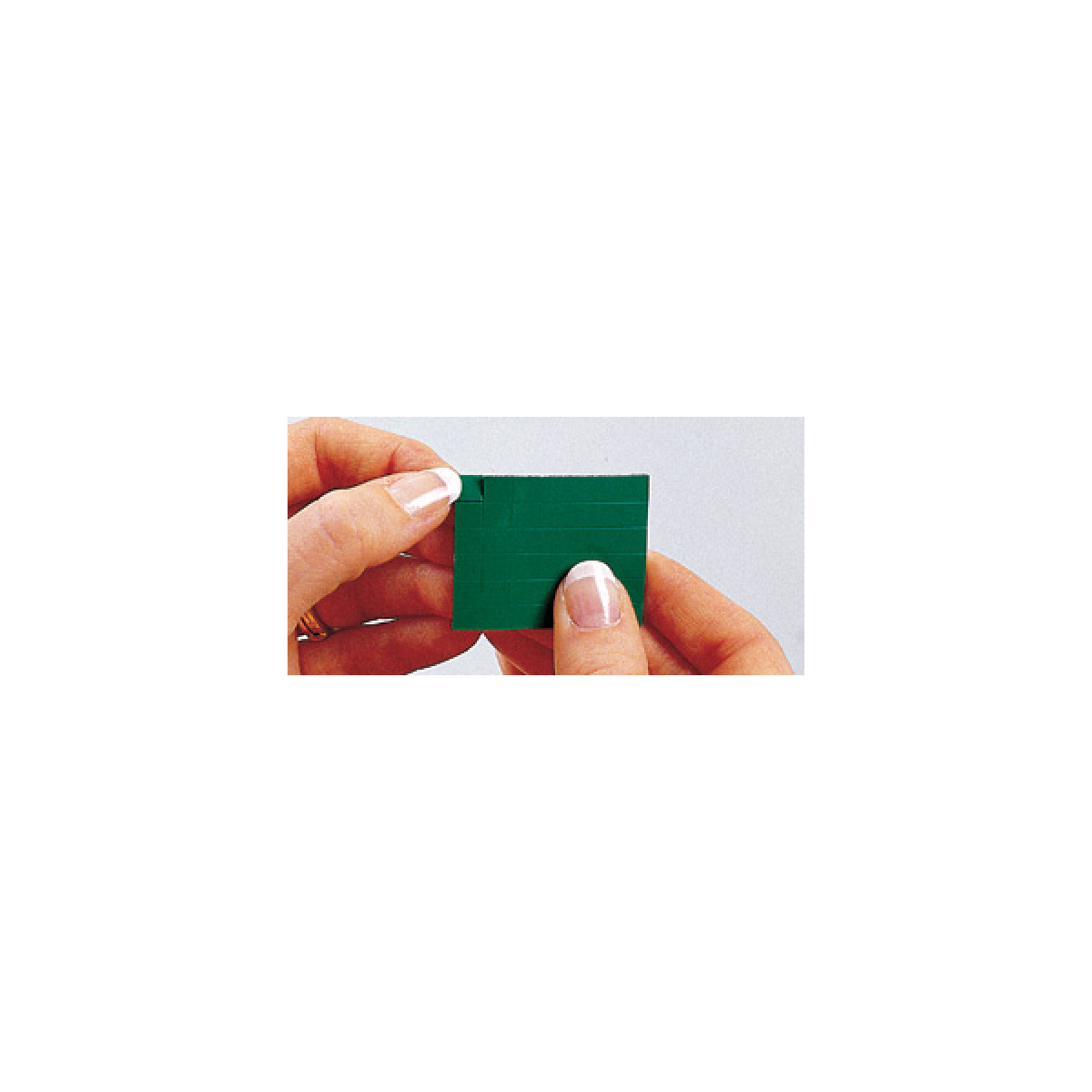

Pictured: break-apart magnets
plant and facilities layout kit
scored break-apart magnet sheets

Plant and Facilities Layout Whiteboard Kit

Design and change space plans on a magnetic whiteboard

  • Experiment with various layouts of plant floor plans
  • Displayed on a high quality, dry erase, magnetic whiteboard
  • Our layout kit is the perfect tool to plan for expansion or re-organization
  • Also used in detailed scheduling and planning tasks
  • The grid pattern whiteboard and everything you need is included
  • Includes FREE Supply Kit - see Detailed Description below
Sizes & Pricing
Step 1:Select Part # to Continue
Step 1:Select Option to Continue
Board Size H' x W'
4' x 6'
Board Size H' x W'Ships Via Board with Kit
Part #Price
4' x 6'Truck80790$959.00
* Price includes a Supply Kit of useful accessories
Additional Information
Detailed Description

  • The grid pattern whiteboard and everything you need is included
  • Design, re-design work areas with magnets and charting tape
  • Plot your walls and other space separators using the Charting Tape
  • Then place machines, equipment, production lines, and work cells using our Break-Apart Magnets (or use colored tape or dry-erase markers)
  • Sketch and evaluate proposals with Dry-Erase Markers in just minutes
  • Long lasting, dry-erase, highly durable whiteboard surface
  • Layout your plan using color Magnets, Charting Tape, Dry-Erase Markers, lettering
  • Break-Apart Magnets are scored for easy contouring to your size of equipment or other markings
  • Includes FREE kit of whiteboard supplies:
    • 4 Break-Apart Magnet 8x10 sheets - red, yellow, green blue
    • 12 Dry-Erase Markers - fine point red, blue, green, black
    • 4 Adhesive Letter & Number Sets - 1/4", 1/2", 1", 2" black
    • 8 Rolls Charting Tape - three 1/8" black, one 1/8" red, three 1/16" black, one 1/8" red
    • Accessory Storage Box
    • Magnetic Penholder
    • Magnetic Eraser
    • Hanging Hardware

Tech Specs

  • High quality magnetic whiteboard in an aluminum frame
  • Intense heat permanently fuses your color graphics design with a sheet of solid steel to produce a highly durable, brilliant, dry-erase magnetic surface
  • Our process produces a sturdy three-layer construction - the steel is laminated onto a rigid engineered wood foundation and backed with a sheet of aluminum foil as a protective moisture barrier
  • WILL NOT STAIN, FADE, SHADOW OR CRACK
  • No surface blemishes that are commonly seen on inferior whiteboards
  • Our Polymer Fusion™ Process creates a long lasting, custom magnetic surface
  •  Maintains its "like new" appearance throughout years and years of daily use
  • This specialized process produces the most durable of any color printed whiteboard surface available in the market today!
  • Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation
  • Service temperature range = -10F to +160F
  • For indoor use
  • Class C Fire rated
  • Aluminum frame: Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion, framed board weighs 2.7 lbs per square foot, depth from board surface face to wall = 9/16" (14.3 mm)
  • Wood frame: color stained and sealed ash, framed board weighs 3.1 lbs per square foot, depth from board surface face to wall = 15/16" (23.8 mm)

Options

  • Special sizes - contact Customer Service for quote
  • Order 4'x6' board with 1/4" grid pattern only (no kit) - P/N 80793, $749.
  • Break-Apart Magnets available in 11 colors - white, yellow, orange, blue, green red, gold, silver, ivory, brown, black
  • Additional Break-Apart Magnet 8x10 sheets - P/N 94025B, $38.50 (indicate color)
  • Additional whiteboard supplies - see Whiteboard Supplies
  • Magnetic letters, numbers, symbols, card holders, clips - see Magnetic Accessories
