Production Unit Measurements Whiteboard

Track production, efficiency and quality on this dry erase whiteboard

production measurements board

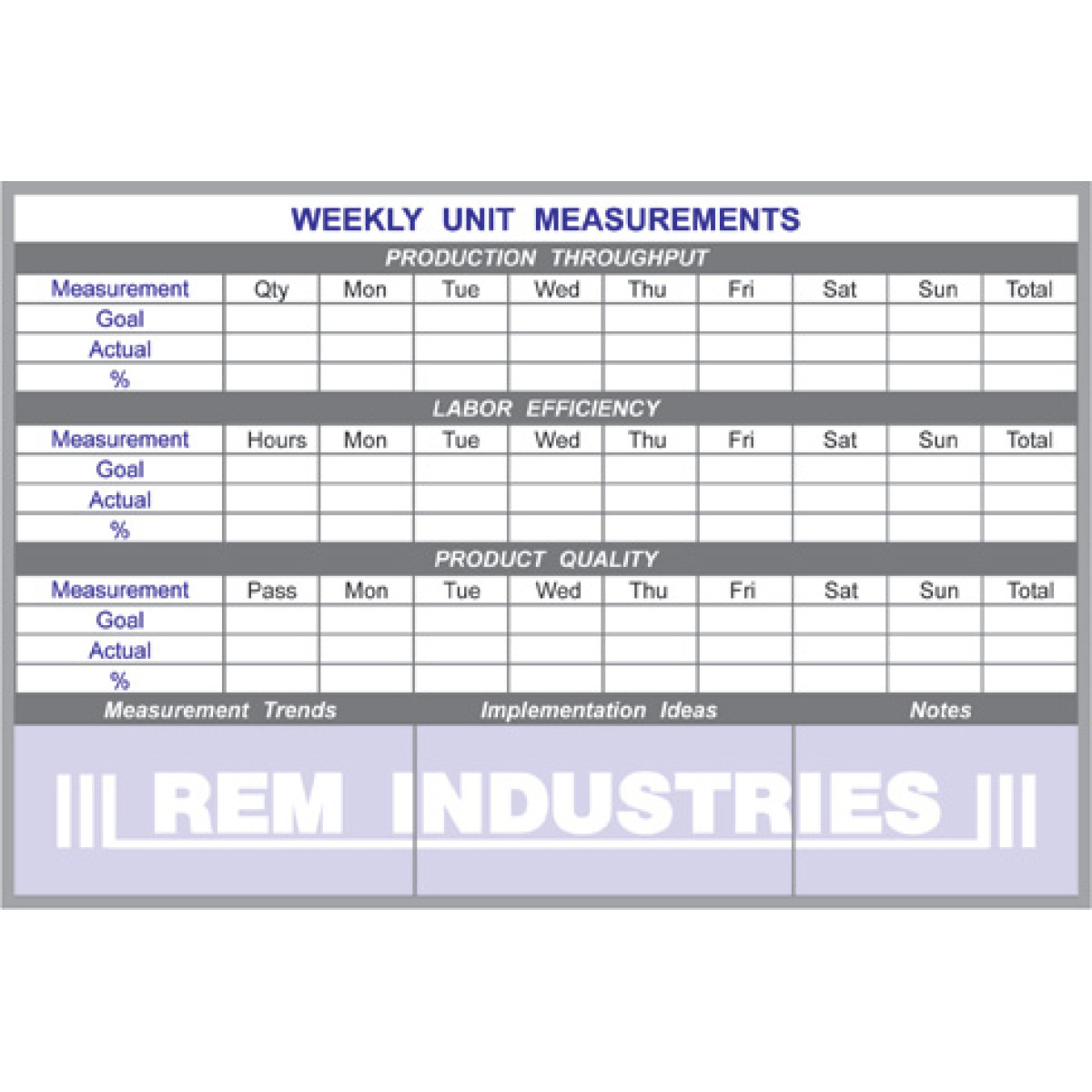

Pictured: P/N 38MG350 - 2'H x 3'W
production measurements board

Production Unit Measurements Whiteboard

Track production, efficiency and quality on this dry erase whiteboard

  • Monitoring production results made quick and simple
  • Use in all types of manufacturing settings or any environment where productivity, quality, and efficiency performance tracking is needed
  • Record quantities and rates, labor hours and quality for each work unit daily
  • Dry-erase, highly durable surface on which to write production data
  • Customize your board design to display your production measurements
  • Includes FREE Supply Kit - see Detailed Description below
Sizes & Pricing
Step 1:Select Part # to Continue
Step 1:Select Option to Continue
Board Size H' x W'Ships Via Board with Kit
Part #Price
2' x 3'UPS38MG350$269.00
3' x 4'Truck38MG570$459.00
4' x 4'Truck38MG770$589.00
4' x 6'Truck38MG790$829.00
* Price includes a Supply Kit of useful accessories
Additional Information
Detailed Description

  • Note: Select a board size for the number of measurements you would like to monitor.
  • Use a 1" per row as a popular height.
  • Board width is primarily determined by the number of time periods you want displayed.
  • The design above is an example only, we will tailor the board to your layout design.
  • Customize your board design to display your production measurements
  • FREE DESIGN CUSTOMIZATION to your specs
  • Change rows from actual, goal and percent to your measuring criteria
  • Add or change number of columns from days of the week to your time periods
  • Use a background watermark of your company logo or department name
  • We create the board to best suit what you need to track work unit production - simply tell us (call, email or fax) what you would like when you order
  • Includes FREE kit of whiteboard supplies:
    • 2 Dry-Erase Markers - fine point black, red
    • Magnetic Penholder
    • Magnetic Eraser
    • Hanging Hardware

Tech Specs

  • High quality magnetic whiteboard in an aluminum frame
  • Intense heat permanently fuses your color graphics design with a sheet of solid steel to produce a highly durable, brilliant, dry-erase magnetic surface
  • Our process produces a sturdy three-layer construction - the steel is laminated onto a rigid engineered wood foundation and backed with a sheet of aluminum foil as a protective moisture barrier
  • WILL NOT STAIN, FADE, SHADOW OR CRACK
  • No surface blemishes that are commonly seen on inferior whiteboards
  • Our Polymer Fusion™ Process creates a long lasting, custom magnetic surface
  •  Maintains its "like new" appearance throughout years and years of daily use
  • This specialized process produces the most durable of any color printed whiteboard surface available in the market today!
  • Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation
  • Service temperature range = -10F to +160F
  • For indoor use
  • Class C Fire rated
  • Aluminum frame: Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion, framed board weighs 2.7 lbs per square foot, depth from board surface face to wall = 9/16" (14.3 mm)
  • Wood frame: color stained and sealed ash, framed board weighs 3.1 lbs per square foot, depth from board surface face to wall = 15/16" (23.8 mm)

Options

Our Review of Your Design

  • FOR ORDERS & QUOTES: click on the desired blue part number above and complete your request. You will be then prompted to attach your file NOW or to receive an email to submit your file LATER.

  • WITH NO ORDER OR QUOTE: to confirm your design or data file is usable or for assistance in selecting the best size or style - Upload Your File Now for our review and acceptance. We will respond by the next business day.

Customer Comments:
Sizes & Pricing
Step 2:Select Part # to continue
Board Size H' x W'2' x 3'
Ships ViaUPS
Board with Kit
Part #38MG350
Price/Ea $269.00
Board Size H' x W'3' x 4'
Ships ViaTruck
Board with Kit
Part #38MG570
Price/Ea $459.00
Board Size H' x W'4' x 4'
Ships ViaTruck
Board with Kit
Part #38MG770
Price/Ea $589.00
Board Size H' x W'4' x 6'
Ships ViaTruck
Board with Kit
Part #38MG790
Price/Ea $829.00
