Cell Layout Chart Whiteboard

A whiteboard using magnets to design work space locations

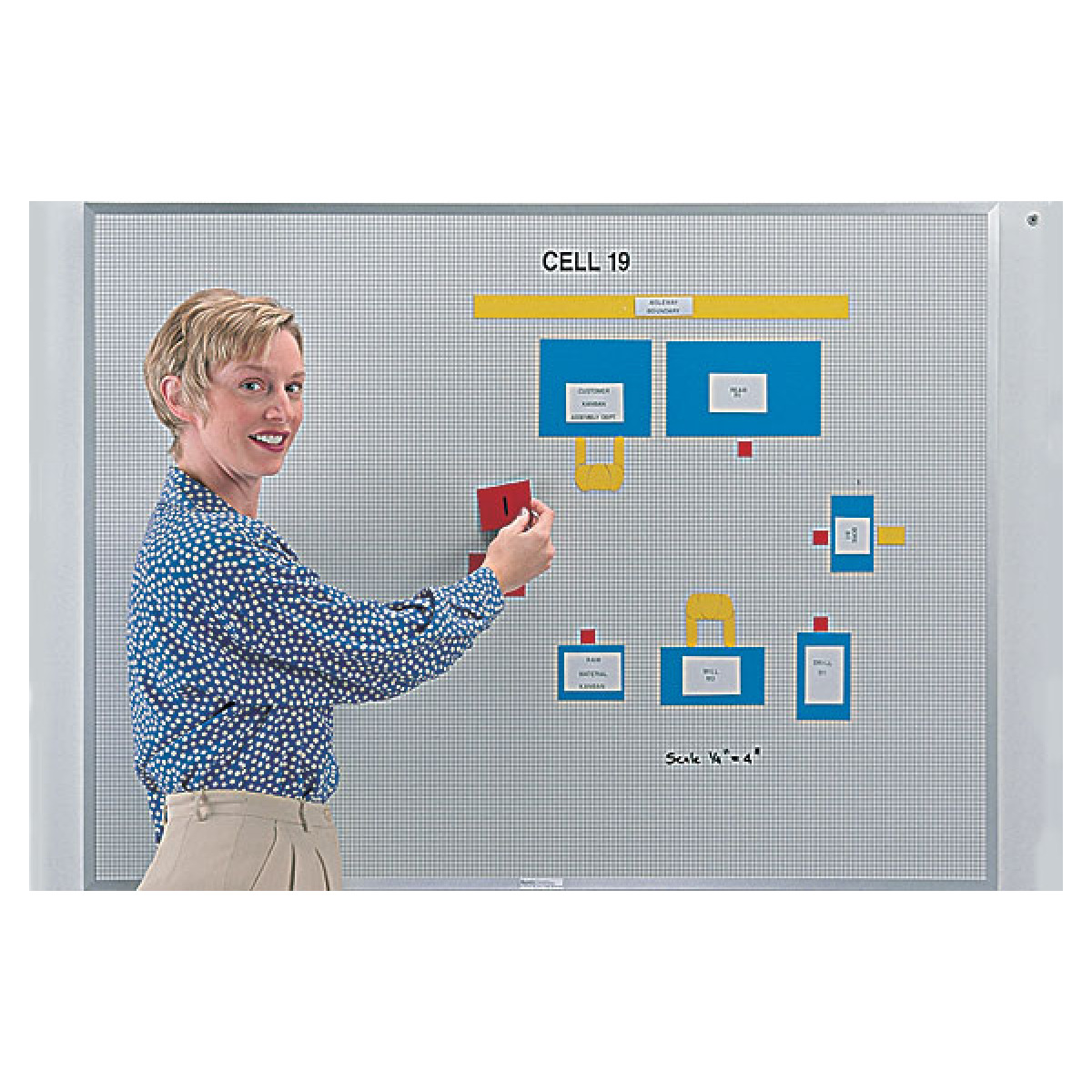

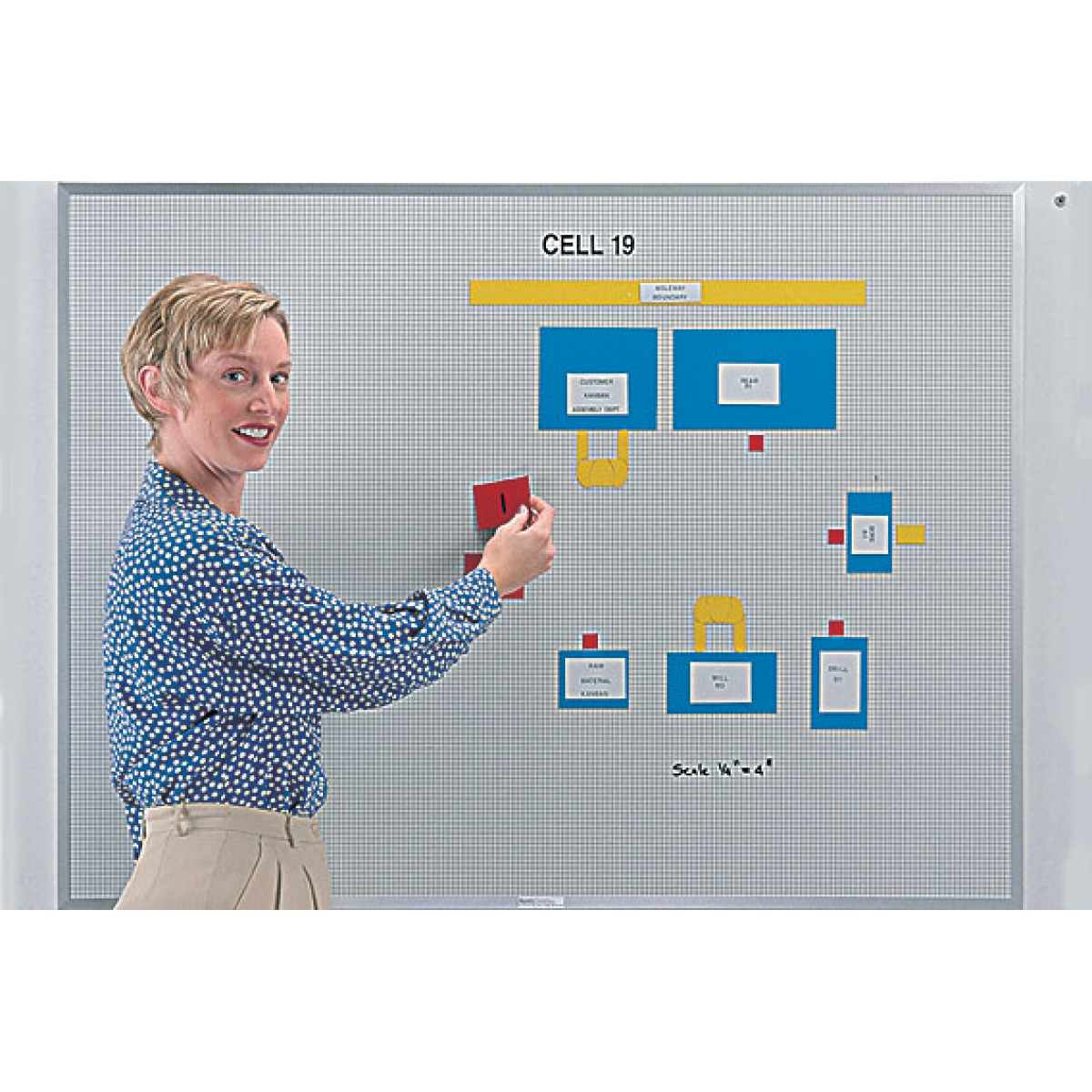

cell layout chart whiteboard kit
Pictured: P/N 20573 - 3'H x 4'W

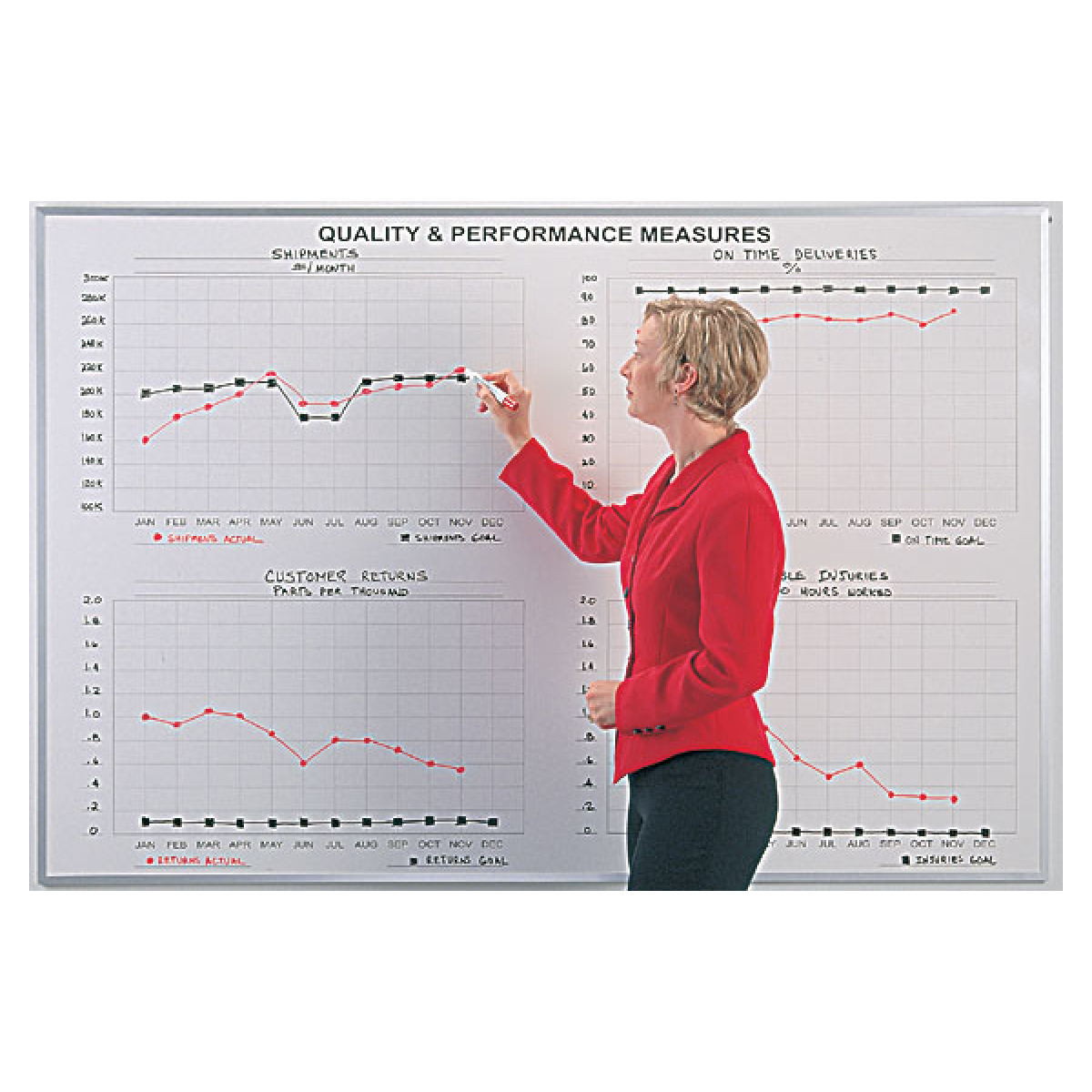

continuous improvement whiteboard
Pictured: P/N 20573 - 3'H x 4'W

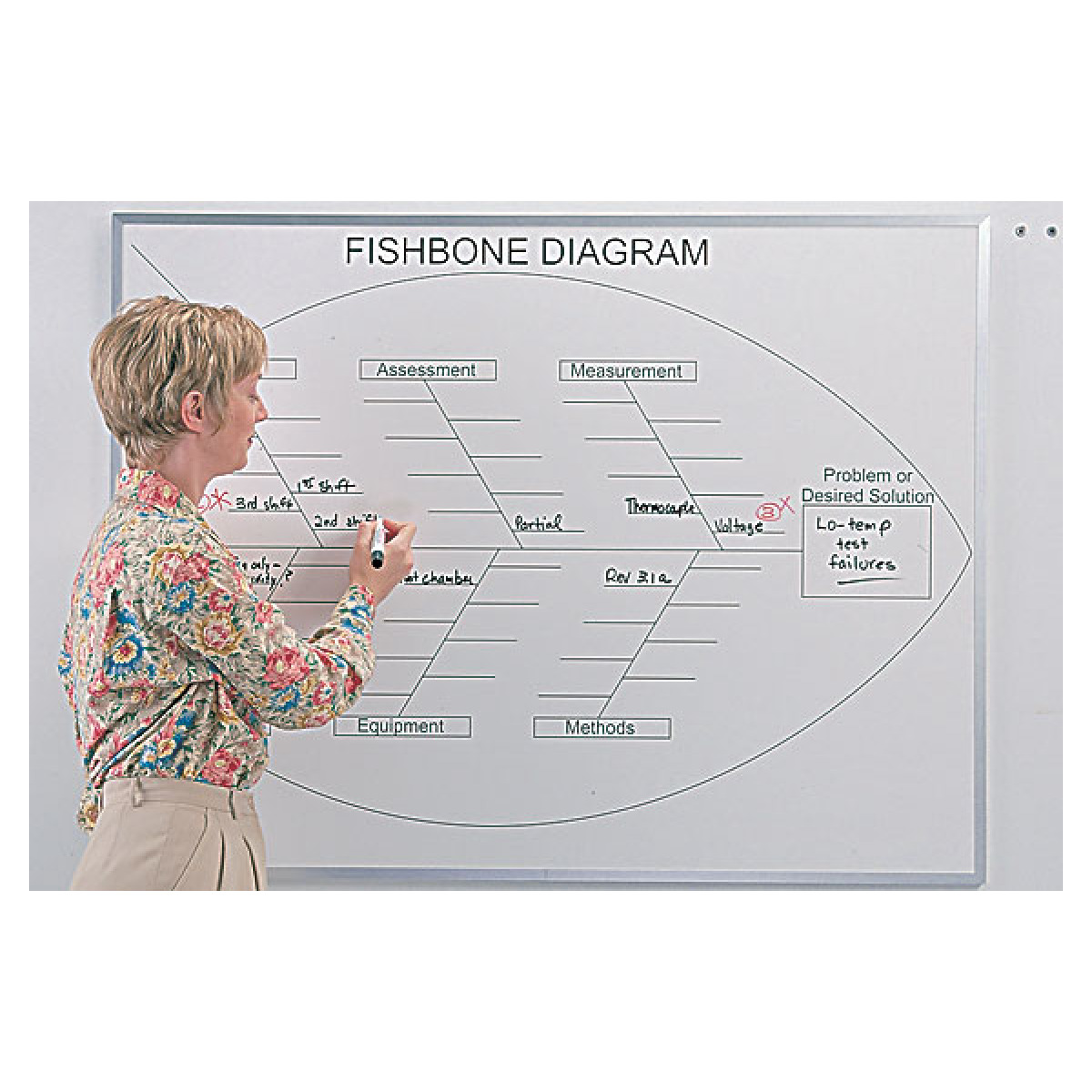

fishbone chart whiteboard
Pictured: P/N 20573 - 3'H x 4'W

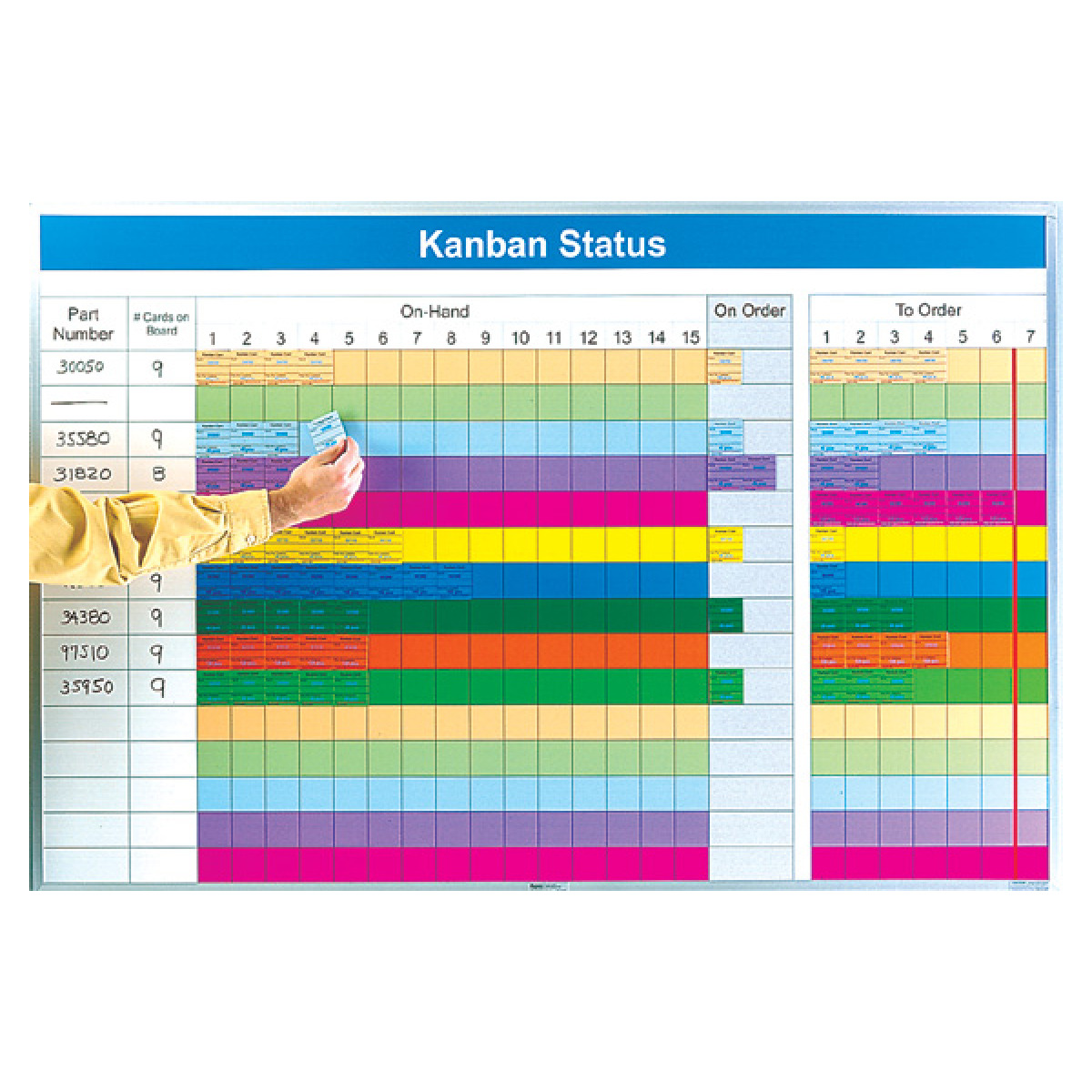

custom kanban whiteboard
Pictured: P/N 20573 - 3'H x 4'W
cell layout chart whiteboard kit
continuous improvement whiteboard
fishbone chart whiteboard
custom kanban whiteboard

Cell Layout Chart Whiteboard

A whiteboard using magnets to design work space locations

  • Plan, design, and change as often as you want
  • Long lasting, high quality, dry erase whiteboard
  • A grid pattern is constructed into the board surface
  • Simply move magnets to update the location of elements within a work unit cell
  • Cell areas can be positioned using our charting tape and identified with the adhesive lettering
  • Includes FREE Supply Kit - see Detailed Description below
Sizes & Pricing
Step 1:Select Part # to Continue
Step 1:Select Option to Continue
Board Size H' x W'
2' x 3'3' x 4'4' x 6'
Board Size H' x W'Ships Via Board with Kit
Part #Price
2' x 3'UPS20353$350.00
3' x 4'Truck20573$575.00
4' x 6'Truck20793$959.00
* Price includes a Supply Kit of useful accessories
Additional Information
Detailed Description

  • Dry-erase, long lasting whiteboard with aluminum frame
  • Our Polymer Fusion™ Process creates a highly durable, custom magnetic surface that will NOT stain, fade, shadow or crack
  • Design your own cell layouts and quickly change to update
  • Includes FREE kit of whiteboard supplies:
    • 1/8" & 1/16" Charting Tape rolls- 2 black, 1 red
    • 1/4", 1/2" 1" & 2" Adhesive Letter Sets - black
    • Break-apart Magnets - 1/4" squares on a perforated 8-1/2"x11" sheets of 1 each red, yellow, green, blue
    • 4 Dry-Erase Markers - fine point red, blue, green, black
    • Magnetic Penholder
    • Whiteboard Cleaner
    • Magnetic Eraser
    • Hanging Hardware


P/N 20573 - 3'Hx4'W
cell layout chart whiteboard kit
P/N 20573 - 3'Hx4'W
continuous improvement whiteboard
P/N 20573 - 3'Hx4'W
fishbone chart whiteboard
P/N 20573 - 3'Hx4'W
custom kanban whiteboard

Tech Specs

  • High quality magnetic whiteboard in an aluminum frame
  • Intense heat permanently fuses your color graphics design with a sheet of solid steel to produce a highly durable, brilliant, dry-erase magnetic surface
  • Our process produces a sturdy three-layer construction - the steel is laminated onto a rigid engineered wood foundation and backed with a sheet of aluminum foil as a protective moisture barrier
  • WILL NOT STAIN, FADE, SHADOW OR CRACK
  • No surface blemishes that are commonly seen on inferior whiteboards
  • Our Polymer Fusion™ Process creates a long lasting, custom magnetic surface
  • Maintains its "like new" appearance throughout years and years of daily use
  • This specialized process produces the most durable of any color printed whiteboard surface available in the market today!
  • Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation
  • Service temperature range = -10F to +160F
  • For indoor use
  • Class C Fire rated
  • Aluminum frame:
    • Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion, framed board weighs 2.7 lbs per square foot, depth from board surface face to wall = 9/16" (14.3 mm)
  • Wood frame:
    • color stained and sealed ash, framed board weighs 3.1 lbs per square foot, depth from board surface face to wall = 15/16" (23.8 mm)

Options

  • Custom designs to your measurement specifications
  • Additional board sizes Whiteboard lining tape, letter sets, pens, symbols - see Whiteboard Supplies
  • Magnetic letters, numbers, symbols, card holders, clips - see Magnetic Accessories

Customer Comments:
Sizes & Pricing
Step 2:Select Part # to continue
Board Size H' x W'2' x 3'
Ships ViaUPS
Board with Kit
Part #20353
Price/Ea $350.00
Board Size H' x W'3' x 4'
Ships ViaTruck
Board with Kit
Part #20573
Price/Ea $575.00
Board Size H' x W'4' x 6'
Ships ViaTruck
Board with Kit
Part #20793
Price/Ea $959.00
