Magnetic Whiteboard Panels

Plain, gridded and lined magnetic dry erase panels

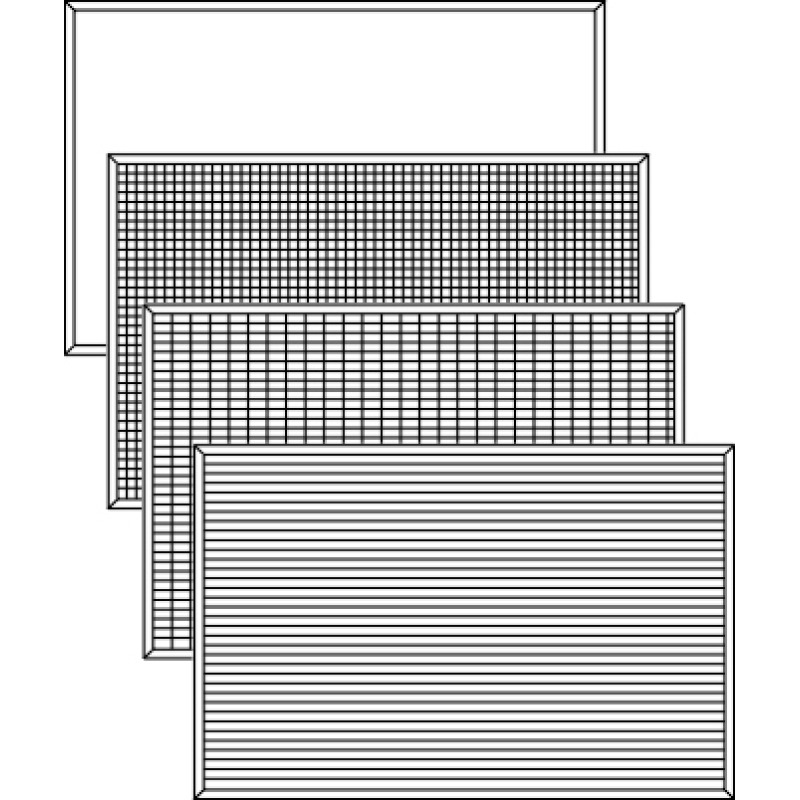

plain, gridded and lined magnetic whiteboard panels
Pictured: four 2'H x 3'W panels
plain, gridded and lined magnetic whiteboard panels

Magnetic Whiteboard Panels

Plain, gridded and lined magnetic dry erase panels

  • You can get our high grade professional whiteboard panels a la carte without a Supply Kit included, then add needed supplies and accessories separately
  • Very durable, dry-erase, non-stain, professional whiteboard panels
  • Ruggedly constructed to provide years of uninterrupted use
  • Magnetic dry erase panels up to 6' wide are supplied with hidden double hanger sets for mounting
  • A package of drywall anchors and screws is included for standard mounting
Sizes & Pricing
Step 1:Select Part # to Continue
Step 1:Select Option to Continue
Board Size H' x W'Ships Via Board Only
Part #Price
1-1/2' x 2'UPS91230$169.00
2' x 2'UPS91330$199.00
2' x 3'UPS91350$235.00
2' x 4'UPS91370$279.00
2' x 6'Truck91390$369.00
3' x 3'UPS91550$305.00
3' x 4'Truck91570$369.00
3' x 5'Truck91580$450.00
3' x 6'Truck91590$510.00
4' x 4'Truck91770$455.00
4' x 5'Truck91780$570.00
4' x 6'Truck91790$625.00
4' x 8'Truck91701$745.00
4' x 12'Truck91705$979.00
1. Sizes over 8' long are available in plain white surface only

2. Specify panel surface style and color with order:
• Plain white
• 1" x 1" gridded
• 1" x 2" gridded
• 1" lined
Additional Information
Detailed Description

  • Dry-erase, non-stain surface on three layer substrate of steel, wood & aluminum
  • Framed in satin finish aluminum channel for the ultimate in durability and appearance
  • Plain - white 1"x1"
  • Gridded - white 1"x2"
  • Gridded - white, 2" wide pattern runs horizontally only
  • 1" Lined - white, lines run horizontally only
  • Sizes over 8' long are available in plain white surface only
  • Specify panel surface style and color with order
  • Magnetic dry erase panels are available with a multitude of options - see the list of Options

Tech Specs

  • High quality magnetic whiteboard in an aluminum frame
  • Intense heat permanently fuses your line graphics design with a sheet of solid steel to produce a highly durable, brilliant, dry-erase magnetic surface
  • Our process produces a sturdy three-layer construction - the steel is laminated onto a rigid engineered wood foundation and backed with a sheet of aluminum foil as a protective moisture barrier
  • WILL NOT STAIN, FADE, SHADOW OR CRACK
  • No surface blemishes that are commonly seen on inferior whiteboards
  • Our Polymer Fusion™ Process creates a long lasting, custom magnetic surface
  • Maintains its "like new" appearance throughout years and years of daily use
  • This specialized process produces the most durable of any color printed whiteboard surface available in the market today!
  • Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation
  • Service temperature range = -10F to +160F
  • These professional whiteboard panels are for indoor use only
  • Class C Fire rated
  • Aluminum frame: Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion, framed board weighs 2.7 lbs per square foot, depth from board surface face to wall = 9/16" (14.3 mm)
  • Optional wood frame: color stained and sealed ash, framed board weighs 3.1 lbs per square foot, depth from board surface face to wall = 15/16" (23.8 mm)

Options

  • Panels may also be hung vertically, however you must indicate that preference with your order such that the installed hanging brackets are properly positioned
  • Color surfaces are also available as a Custom Whiteboard
  • Custom lining - lines added according to your specifications
  • Custom lettering - computer-cut color vinyl
  • Custom Whiteboard graphics - contact Customer Service for quote
  • Wood frame - Natural Oak, Walnut, Cherry, Black Stains; add 20% to price above
  • Partition hangers - fits over the top of a standard 2" thick partition, holds up to a 3'x4'  size, P/N 90452, $14. per set of 2
  • Whiteboard Skin only - plain surface whiteboards (dry erase whiteboard on steel with no backing) are available for re-surfacing applications, sizes up to 4'x8', price is 60% of panel prices above
  • Panels also made to your desired specific size - see Custom Size Whiteboards
  • Magnetic & Whiteboard Accessories Chalktray - full length (width) of panel, to order simply add a T to the end of the panel Part Number, $6.50 per foot
  • Accessory Pack includes:
    • Write-on/Wipe-off Magnets, Adhesive Letter Sets, Whiteboard Tape, Magnetic Chalktray, and Magnetic Eraser, to order simply add an X to the end of the panel Part Number, $21. for panels 2'x3' or smaller, $100. for panels up to 4'x12'
  • Complete Whiteboard Accessory Kit - see Whiteboard Accessory Kit
  • Lining tape, eraser, chalktray, letter/number sets, markers - see Whiteboard Supplies
  • Magnetic letters, symbols, card holders, clips - see Other Magnetic Accessories
